Alum Windows

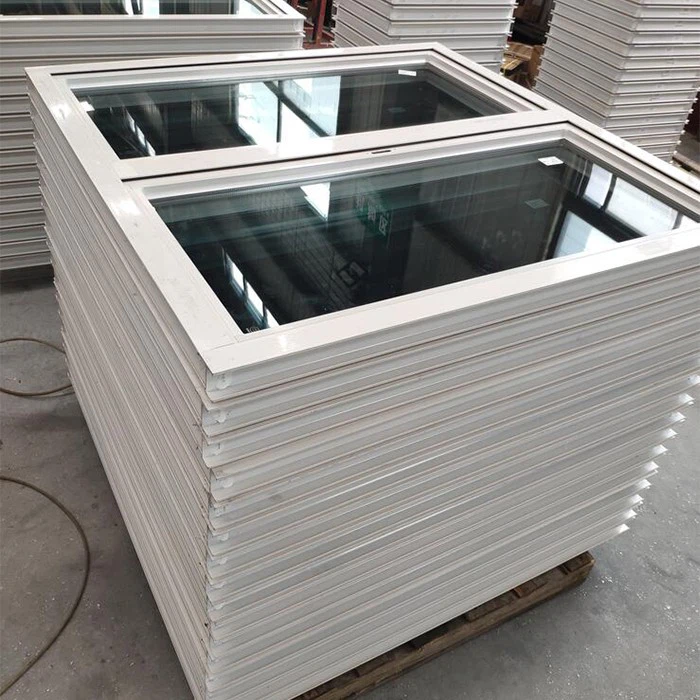

50 sereis alum windows
powder coated surface treatment white color,elegant grey tinted glass, 50 series.
Product Parameter:
Material Thickness | 50mm profile depth, 1.4mm thickness. |
Produces Series | Aluminum -50 series |
Hardware | High Quantity Made In China/ Germany Or You Want |
Glass | Single Tempered Glass |
Double Tempered Glass | |
5mm/6mm+9A/12A+5mm/6mm Tempered Glass | |
LOW-E Glass | |
Laminated Glass | |
Color | White,Black,Bronze,Blue,Golden Wood,Champagne Or You Want |
Surface Treatment: | Power coating, Anodizing, Over laminate, Electrophoresis |
Glass details:
Glass data: | 1) Double / Triple glazing: |
a) 5+12+5mm Clear Glass; b) 5+0.76PVC+5mm Clear Glass; | |
2) Single glazing: | |
a) 5mm; b) 6mm; c) 8mm; d) 10mm; e) 12mm etc... | |
3) Tinted: | |
a) Green; b) Ocean Blue; c) Blue-star Grey; d) Europe Grey... | |
4) Tinted Reflective (Coating) | |
a) F-Green; b)Ocean Blue; c)Blue-star Grey; d)Sliver... |
Lead Time:
Quantity(Square Meters) | 1 - 100 | 101 - 300 | 301 - 1000 | >1000 |
Est. Time(days) | 15 | 25 | 35 | Negotiable |

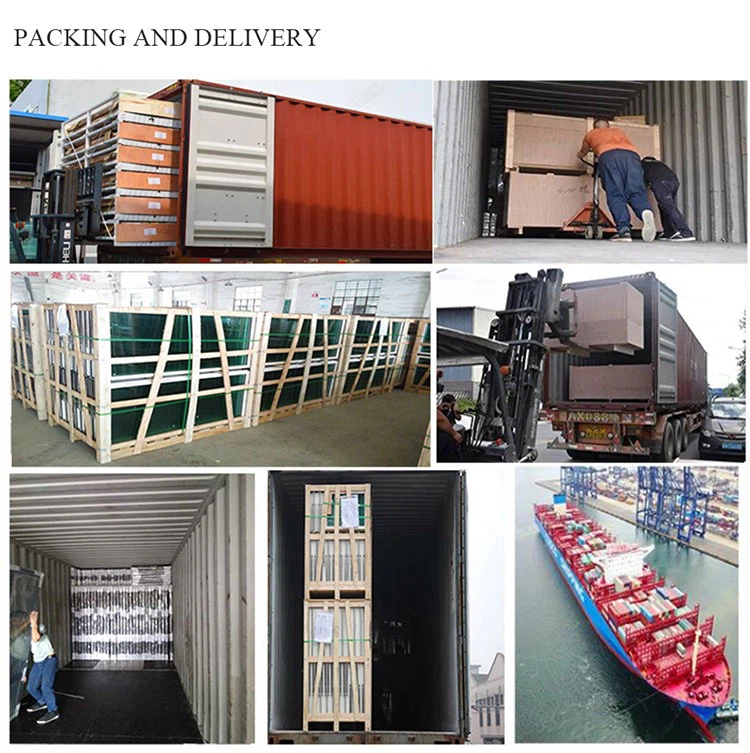

Packaging Details:
1, Bubble bag+ plastic film
2, Bubble bag+ wooden frame
3, Bubble bag+ wooden box
One Stop Solution Services:
Different Country has different climatic characters , we provide professional solutions on Doors & windows Profiles surface treatments and glazing to meet its diversity, it concerns the longevity of windows or doors, and each function of energy absorbing & saving .
Maintenance:
1. After the door and window are installed, the surface protective film of the profile should be torn off and scrubbed clean; otherwise, the protective film adhesive will remain on the profile and it is difficult to clean.
2. In the windy days should close the sash of the sliding window in time.
3. When the sliding window is used, the sliding rail should be cleaned frequently to keep it clean, so that there is no hard particle material in the track surface and the groove.
4. In the window frame, window sash and other parts are provided with a drainage system to ensure the airtight performance and watertight performance of the doors and windows, users do not block the drainage holes of doors and windows during use, so as to avoid the drainage performance of doors and windows.
FAQ
Q1: Can you use rubber instead of glass silicon?
A: Yes, but it just can be one side, the other side has to be glass silicon. Because it is not strong enough to use double rubber. And it is easier to fall off than the glass silicon.
Q2: What is the difference between the 90 degree and 45 degree connecting?
A: There are 90 degree and 45 degree corner connecting. 90 degree window is connected by screw, and we assemble the 45 degree window by corner brace. The 45 degree corner connecting window is new style, which is easy to overhaul.
Q3: Do you know what is U-value?
A: Yes, it simply means that every degree of temperature difference between a hotter air space and a colder air space, the heat energy will transfer per sq.m to the colder air space. For example, let say your house has a ceiling area of 100sqm, the difference in temp is 30deg, and the amount of watts you pay for consume is 6000w. Then the U-value is 6000w/100m * 30k=2w/(m *k).
